Static balancing valve iDROSET® Series CF

Static balancing valve iDROSET® Series CF

CALCULATION TOOL

BIM OBJECT

Description

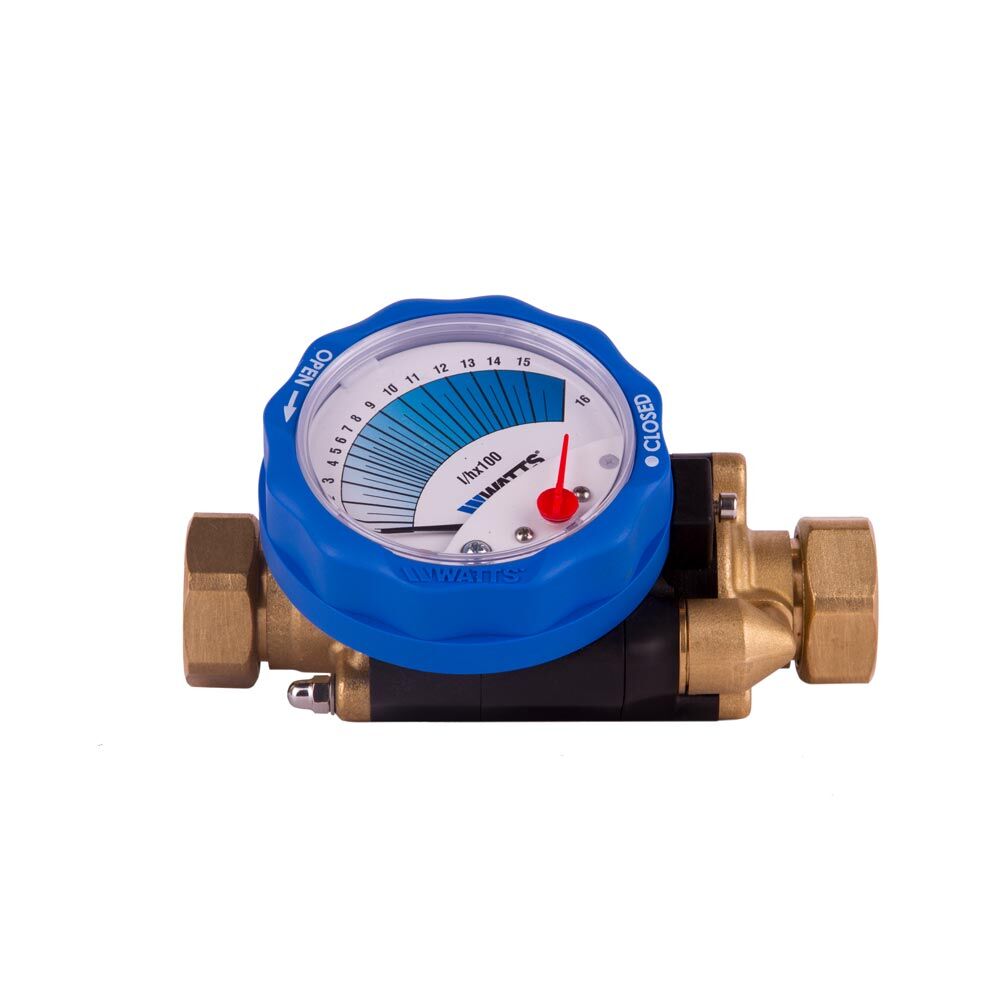

Static balancing and control valve Series CF Watts Brand with free nut connection from DN15 to DN50 for heating, cooling and domestic water distribution systems. Brass and polyamide body. New patented technology that allows to set and read instantly the flow rate on board without the requirement of special tools. Shut-off function. Lock of the hand wheel. Indication of the flow rate set point by a manual red pointer.

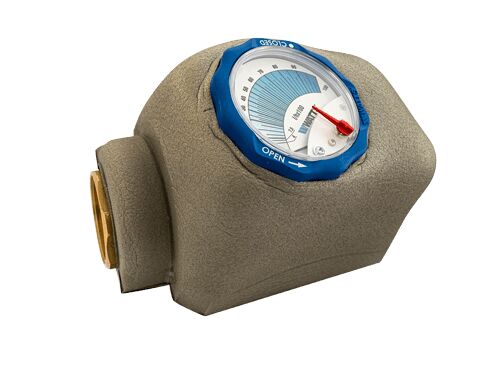

Isolation shells for balancing valves iDROSET® Series CF. Thermal conductivity ?: 0,036 W/mK. Fire resistant: B2 Class - DIN 4102.

NB. Please check your local regulations for application suitability.

Nominal pressure of 16 bar.
Operating temperature range from -10 °C to 110 °C.
Balancing turn down ratio up to 32:1.
Fluids: water with glycol up to 50%.

Technical Features

Part no.

Union Nut Connection

Part Number	DN	Kvs	Flow rate (l/h)	Weight (Kg)	Q.ty/Box	Box/Carton
PAP-S015	1/2”	1,7	35/700	1,0	1	1
PAP-S020	3/4”	1,7	35/700	1,0	1	1
PAP-M025	1”	4,4	50/1600	1,1	1	1
PAP-L032	1 1/4”	14	250/6000	2,6	1	1
PAP-L040	1 1/2”	14	250/6000	2,6	1	1
PAPXL050	2”	25	400/10000	5,1	1	1
