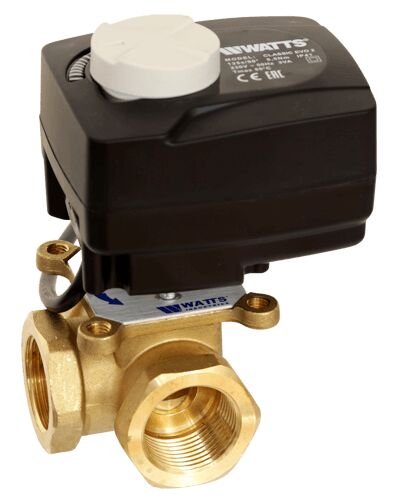

Three-way sector mixing valve V3GB with actuator WATTS CLASSIC
×
![]()
Three-way sector mixing valve V3GB with actuator WATTS CLASSIC
Three-way sector mixing valve V3GB with actuator WATTS CLASSIC
Description
Three-way sector mixing valve equipped with 3-point electronic bidirectional modulating actuator.
- Max working pressure 10 bar. Working temperature 0 °C - 110 °C.
- Brass body and rotor, EPDM gaskets.
- Threaded female connections from 1/2” to 2”.
- Rotation angle of 90° in 125 seconds.
- Power supply 230 V, 50 Hz; power consumption 5 VA.
- Complete of 2 m length electrical cable.
- Working also as diverting valve.
- Suitable for water with max. glycol 50%.
Technical Features
Part no.
| Type | Part no. WII | Part no. WID | DN | Kvs |
| V3GB | W3GB0015M60230 | 10027989 | 1/2" F | 2,5 |
| V3GB | W3GB0204M60230 | 10027990 | 3/4" F | 4 |
| V3GB | W3GB0206M60230 | 10027991 | 3/4" F | 6 |
| V3GB | W3GB2508M60230 | 10027992 | 1" F | 8 |
| V3GB | W3GB2512M60230 | 10027993 | 1" F | 12 |
| V3GB | W3GB3215M60230 | 10027994 | 1 1/4" F | 15 |
| V3GB | W3GB3218M60230 | 10027995 | 1 1/4" F | 18 |
| V3GB | W3GB4026M60230 | 10027996 | 1 1/2" F | 26 |
| V3GB | W3GB5040M60230 | 10027997 | 2" F | 40 |
