PE-X coupling heating/COOL - 6/16bar MJ341
PE-X coupling heating/COOL - 6/16bar MJ341
Description

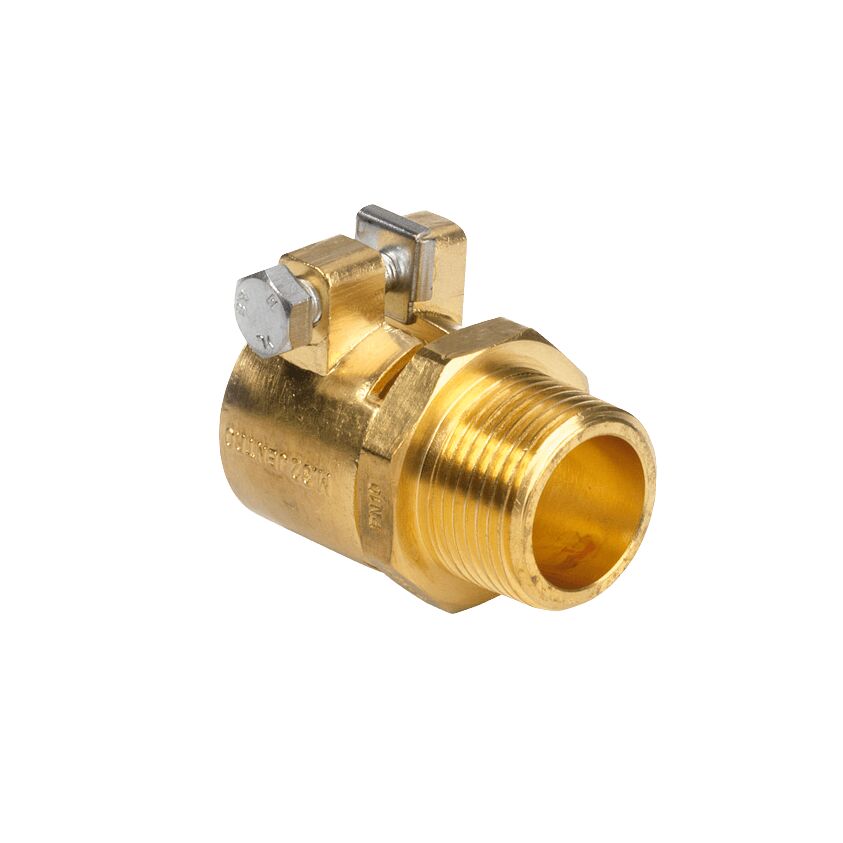

Straight coupling for use in piping systems equipped with transport pipes for heating, cold or cooling water applications. The coupling has a long supporting pipe for optimal clamping, a conical outside thread connection and a clamping ring with stainless steel bolt. The included remote plate makes it easier to fit the coupling. Assembly instructions: see our Installation manual.
• Max operating pressure: 6 bar (16 bar)
• Max fluid temperature: +95°C (+25°C)
• PEX-a and PE pipes: SDR 11
• Supporting pipe material: CW602N
• Clamping ring material: CW602N
• Max fluid temperature: +95°C (+25°C)
• PEX-a and PE pipes: SDR 11
• Supporting pipe material: CW602N
• Clamping ring material: CW602N
