Microflex HP for heat pump connection
Description

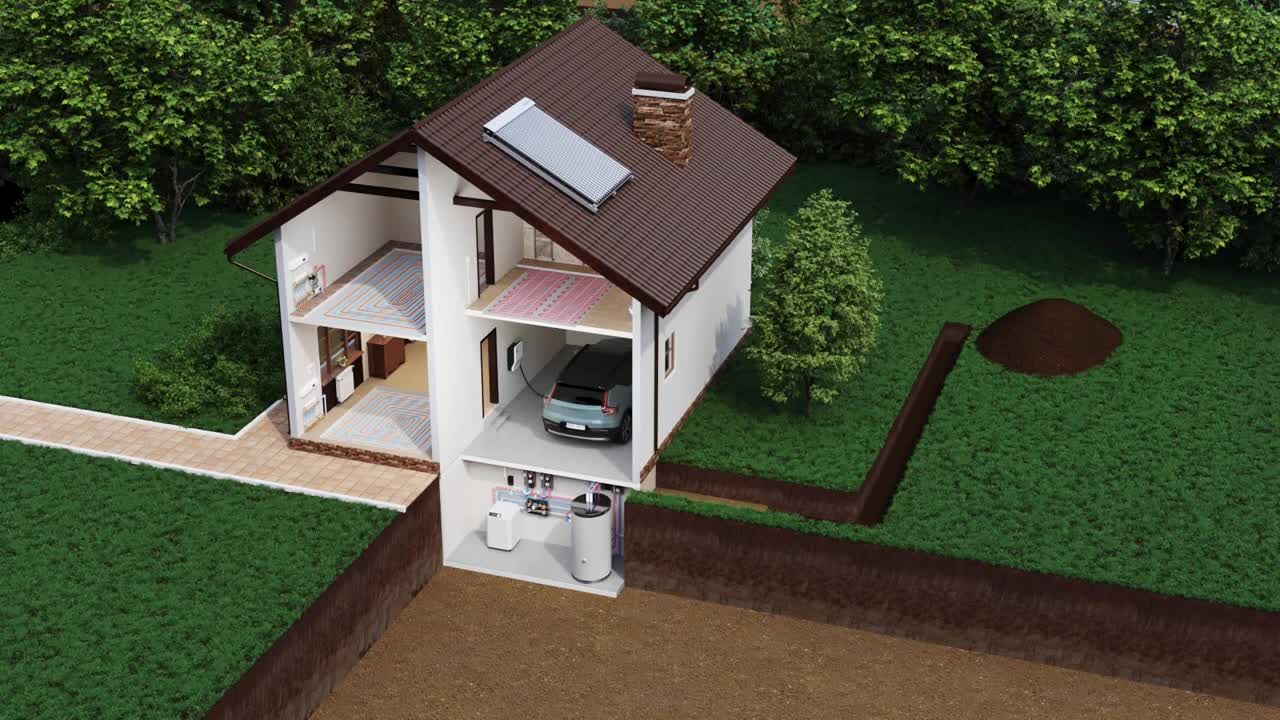

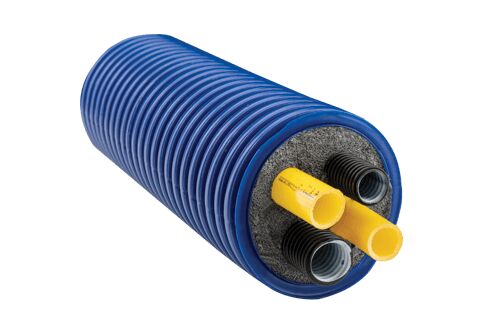

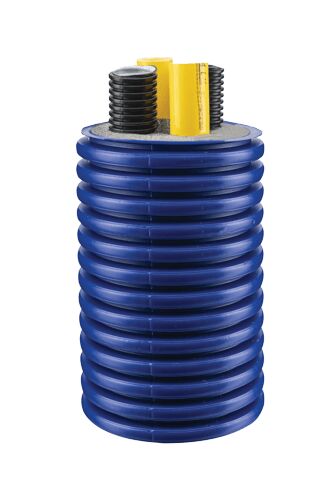

Microflex’s pre-insulated piping system is composed of a thermal insulation around a carrier pipe and covered by a “closed chamber“ protective UV-resistant outer casing. Microflex HP pipe is used for the connection of external heat pumps, e.g. Air-Water Monobloc heat pumps. The intelligent design of Microflex HP combines the supply and return pipes for heating/cooling with two corrugated pipes for mains and control cables in the same outer casing. The empty corrugated pipes allow safe routing of the cables. It provides significant advantages such as low-weight, hyper flexibility, robustness, and easy and rapid laying even over obstacles and around corners. System accessories can be mounted without any special tools. The Microflex HP piping system consists of four (4) integrated components and it is manufactured according to the EN 15632: 1-3 norm.
Technical Features
Part no.
| Part no. | PE-Xa d_out x s (mm) | DN | Electric corrugated conduit outer/inner diameter (mm) | Outer casing d_out (mm) | Weight (Kg/m) | Av. thickness of Insulation (mm) | Inner Bending Radius (1) (m) |
| MQ12525C3225E | 2 x 25 x 2.3 | 20-20 | 25/18.8 32/25 | 125 | 1,63 | 15 | 0,3 |
| MQ12532C3225E | 2 x 32 x 2.9 | 25-25 | 25/18.8 32/25 | 125 | 1,79 | 12 | 0,3 |
| MQ16032C3225E | 2 x 32 x 2.9 | 25-25 | 25/18.8 32/25 | 160 | 2,27 | 27 | 0,5 |
| MQ16040C32E | 2 x 40 x 3.7 | 32-32 | 2 x 32/25 | 160 | 2,60 | 15 | 0,6 |
| MQ20050C40EWI | 2 x 50 x 4,6 | 40-32 | 2 x 40/32 | 200 | 4,00 | 80 | 0,6 |
