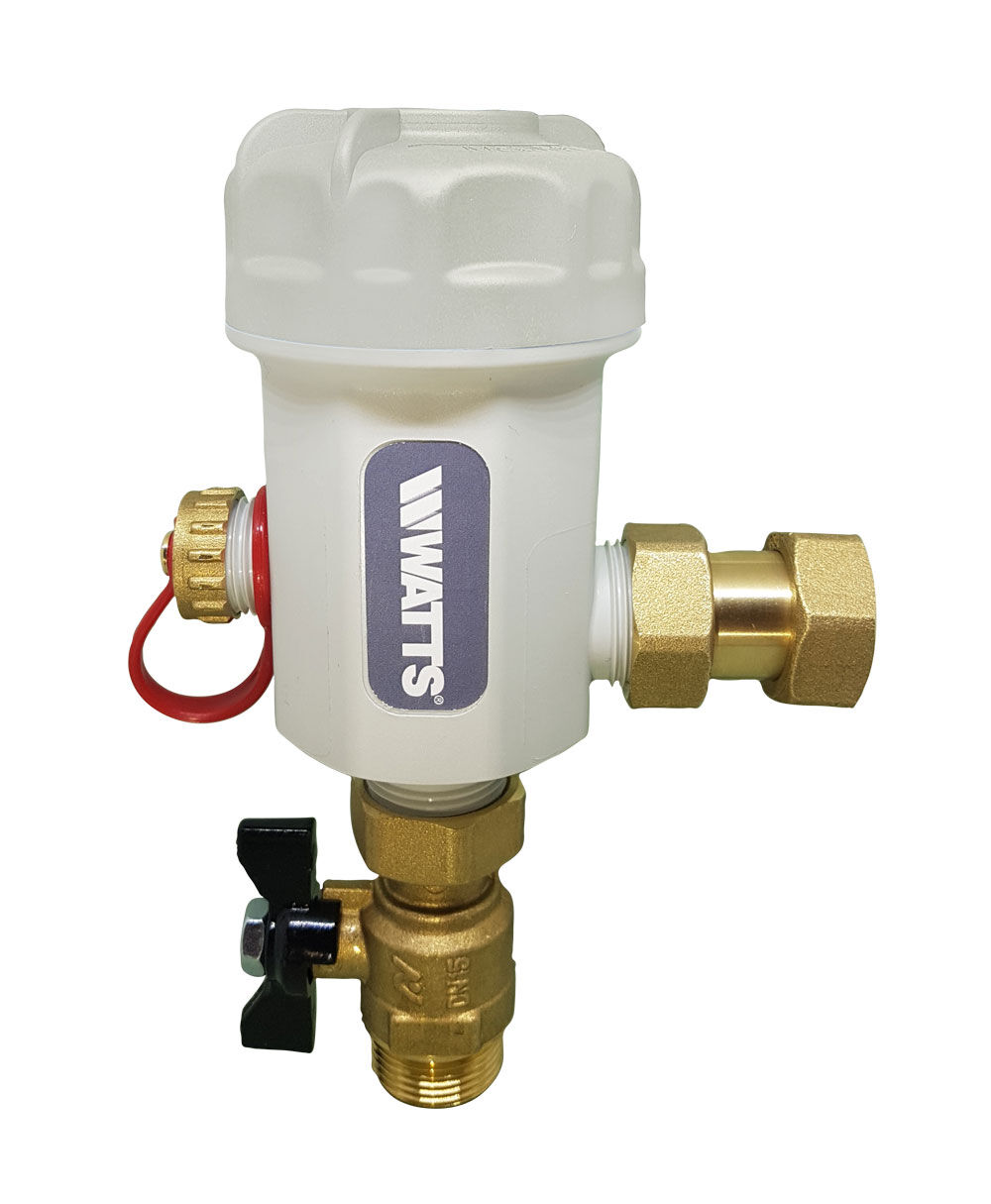

Compact magnetic dirt separator DSP - phase out
Opis
PHASE OUT PRODUCT Replaced by DSPN The compact magnetic dirt separator ensures that the boiler stays continually protected, as it retains all impurities present in the system and prevents their circulation, consequently avoiding wear and preventing damage to other components of the system (e.g. pumps and heat exchangers). The DSP Series magnetic dirt separator is installed on the return circuit, at the inlet to the boiler. It is intended exclusively for use in domestic heating systems and is easy to install under the boiler because of its compact size. Connections: main body G 3/4”, drain G 1/2”. Complete with ball valve and swivel fitting made of brass. Compatible fluids: water, water + glycol 70/30.
- Body PA66
- Filter cartridge AISI304L
- Ball valves CV617N
- Filtration rating 650μm
- PN 3 bar
- Max. temperature 90°C
- Operating temperature 4 to 90°C
- Magnet NdFeB - 4500 Gauss
- Water with glycol 70/30
Technical Features
Nr kat.
| Part No. | DN | PN | Weight (g) |
| DSP0034W | 3/4" | 3 bar | 570 |
