Single MICROFLEX COOL

Single MICROFLEX COOL

Description

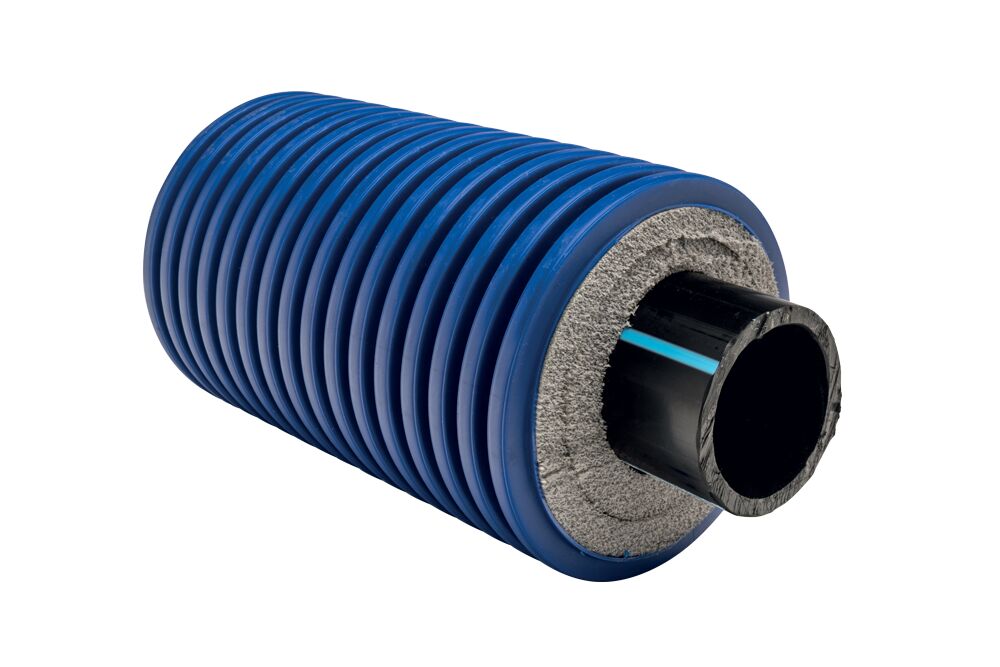

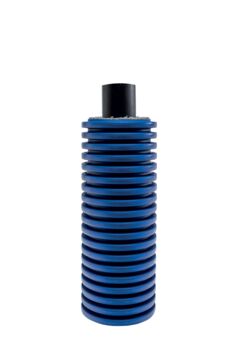

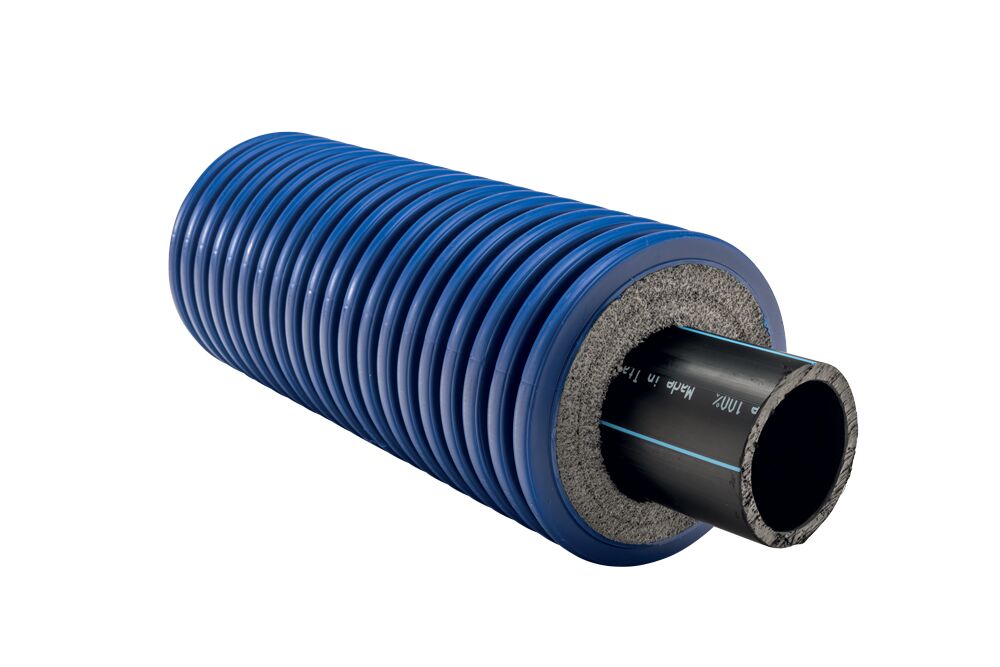

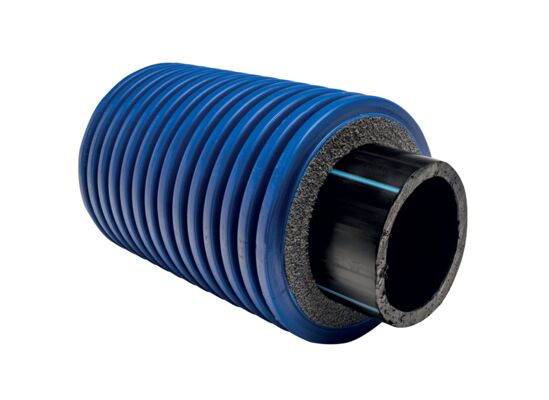

Single flexible, pre-insulated, self-compensating, underground pipe. Suitable for cold potable water, cooling water and wastewater. Corrosion-resistant transport pipe in PE 100 in accordance with EN 12201. Thermal, elastic, CFC-free foam insulation made from cross-linked PE-X with closed microcellular structure. Minimal water absorption capacity of < 1% in accordance with ISO 2896. Corrugated outside casing in HDPE, made in accordance with the closed chamber principle to provide high-grade protection to the piping system.

Technical Features

Part no.

Art. No.	Ø Buitenmantel dout (mm)	Ø PE dout/S (mm)	Weight (kg/m)	Insulation	Bending radius (m)	Ø / thickness of coil
M9032PE	90	32 х 2,9	1,00	standard	0,25	2,00 / 0,45
M9040PE	90	40 х 3,7	1,11	standard	0,30	2,10 / 0,70
M12550PE	125	50 х 4,6	1,92	standard	0,40	2,10 / 0,70
M12563PE	125	63 х 5,8	2,16	standard	0,50	2,10 / 0,70
M16075PE	160	75 х 6,8	3,20	standard	0,75	2,30 / 0,85
M16090PE	160	90 х 8,2	3,85	standard	1,00	2,30 / 0,85
M200110PE	200	110 х 10,0	5,74	standard	1,20	2,30 / 1,40
