RF Water Heating Controller Heat & Cool WFC-03 HC

RF Water Heating Controller Heat & Cool WFC-03 HC

Description

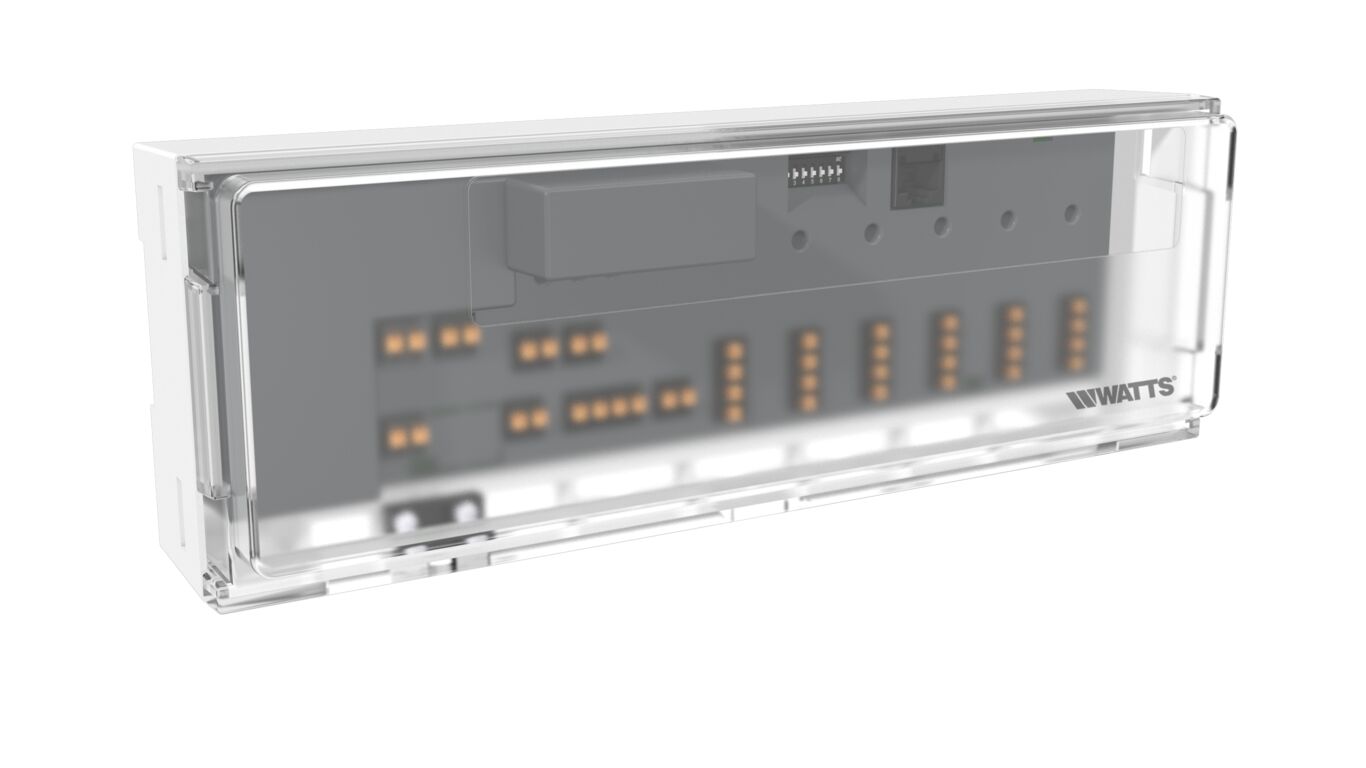

The wireless Connecting box WFC-03 HC RF is especially designed to control your Under Floor Heating and Cooling system. It allows easy and quick connection of thermostats and actuators. It has integrated multiple functions: - Wall mounted or mounter on DIN Rail - Push-in cable connections with strain relief - LED status indication and DIP switch for device setting - Manage 6 or 10 zones with 2 actuators per zone - Easy merging of the zones on the same thermostat - Multiple systems configuration - H&C input (230V and volt free signal) - Water temperature measurement (Probe not supplied) for humidity detection - Pump or boiler output (230V and volt free signal) - Anti-Grip management - Overheating security - Internal RF antenna, optional external antenna - Work with NC and NO actuators - USB connectivity for software update and data log

Electrical protection: Class II with functional earth
IP Protection: IP30
Shipping and storage temperature: -10°C à 50°C (14°F à 122°F)
Power supply: 230 Vac ± 10% 50Hz
Output maximum load (2 outputs): Relay : 5A
Actuators: 230V /24V NC/NO up to 2.5W
Compatibility: BT-A02 RF / BT-A03 RF; BT-D02 RF / BT-D03 RF; BT-DP02 RF / BT-DP03 RF; BT-HCM02 RF / WFHC HCM 02 RF 230; BT-CT02 RF

Technical Features

Part no.

Type	Part no.	Description
WFC-03 6Z 02 HC RF868 24	P08291	RF 6 Zones Water Heating Controller Heat & Cool 24 VAC
WFC-03 6Z 02 HC RF868 230	P08397	RF 6 Zones Water Heating Controller Heat & Cool 230 VAC
WFC-03 10Z 02 HC RF868 24	P08292	RF 10 Zones Water Heating Controller Heat & Cool 24 VAC
WFC-03 10Z 02 HC RF868 230	P08399	RF 10 Zones Water Heating Controller Heat & Cool 230 VAC
