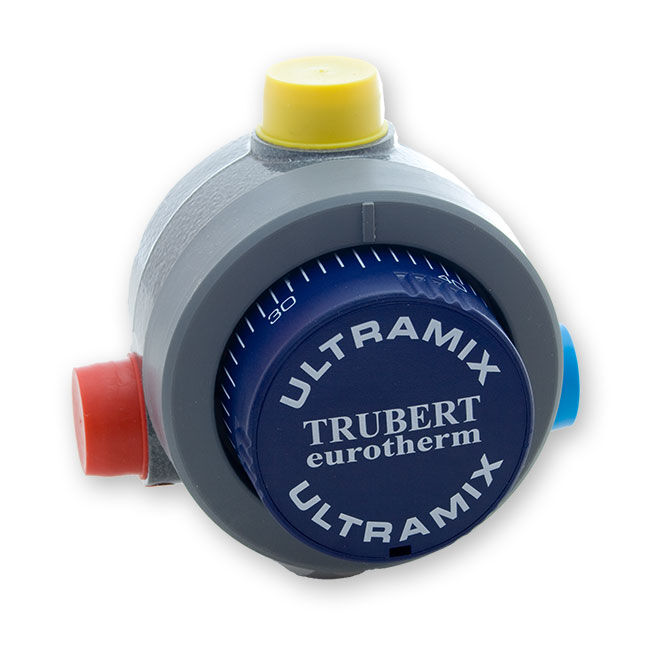

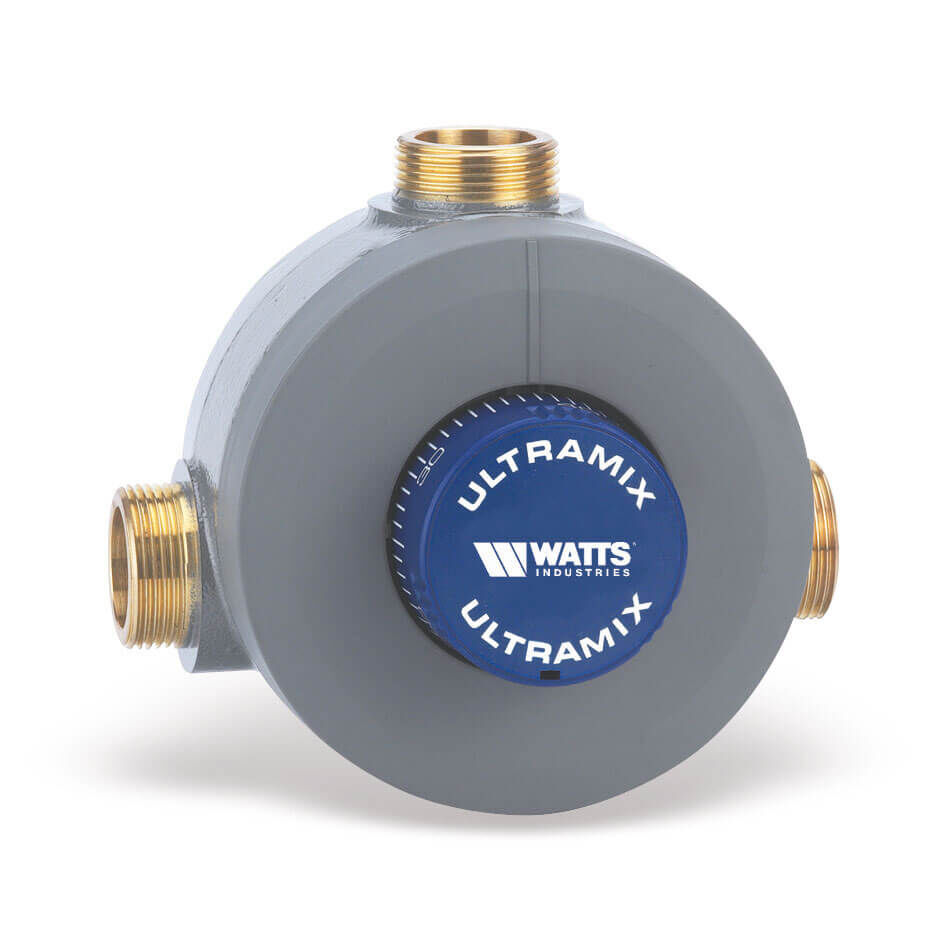

Ultramix Thermostatic
Description
For community installations. Allows controlling and holding of mixed water temp. at a constant level. Brass body. Cover with grey epoxy finish/blue graduated knob (Type E). Chrome-plated cover with white graduated knob (Type C). Anti-seize mechanism with filters and check valves. Bimetal steel strip coated with rilsan to protect against scale formation. Anti-scald protection. Max. operating pressure: 10 bar. Max. hot water temperature: 85°C. Min. difference in inlet/outlet temperature: 5°C. Thermostatic mixing valve mechanism. Approved check-valves NF. Filtering : Strainer. Guaranteed for 2 years. Rinsing kit.
Anti-scalding feature : The hot water shuts off automatically if there is not enough cold water (Δ Hot water/Mixed water > 10°C).
Thermostatic mixing valve mechanism: the mechanism is directly integral with the thermostatic mixing valve cover.
Approved check-valves NF: superior level hydraulic features, due to the valve closure member's overall design.
Filtering : Strainer anchored on watertight elastomer support. Perfect accessibility, disassembly without tools, easy cleaning requiring no special qualification.
Total interchangeability: the ULTRAMIX range cartridges are interchangeable with the current range and the old range.
ULTRAMIX is guaranteed 2 years.

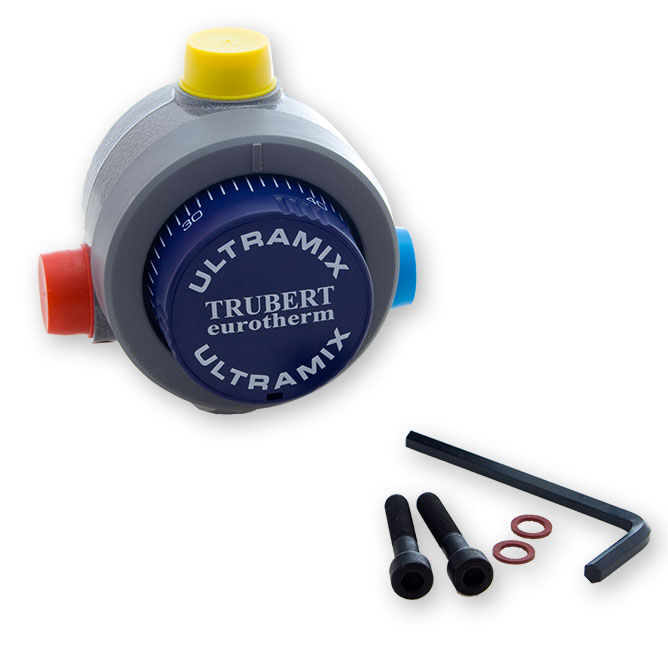

Rinsing kit included.
Technical Features
Part no.
Downloads
-
Technical Data Sheet | Thermostatic mixing valves ULTRAMIX® TX92
-
Technical Data Sheet | Thermostatic mixing valves ULTRAMIX® TX93
-
Technical Data Sheet | Thermostatic mixing valves ULTRAMIX® TX96
-
Technical Data Sheet | Thermostatic mixing valves ULTRAMIX® TX95
-
Technical Data Sheet | Thermostatic mixing valves ULTRAMIX® TX94
-
Technical Data Sheet | Thermostatic mixing valves ULTRAMIX® TX91
